Krage kort SDR17

QDE17

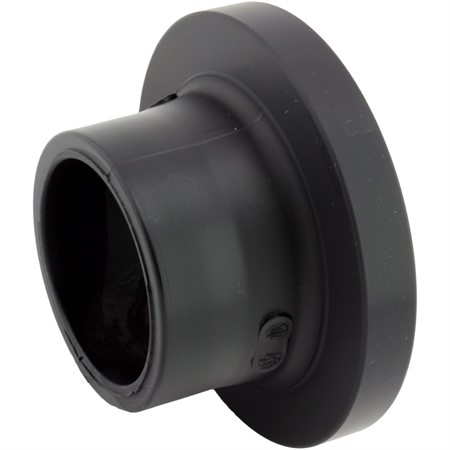

Krage kort SDR17

  • PE100-krage kort
  • Kort ende
  • SDR17 Vann PN10 Gass PN6
  • Større dimensjoner og SDR26, 33 og 41 på forespørsel
Produktdatablad
FDV
Teknisk tegning
ArtikkelkodeNRF.da(OD)d3SDRd4hLsPå lager
QDE17-05024451125061SDR1788.012.0503
Nedlastinger
CAD/InventorCAD/Step
QDE17-06324451146375SDR17102.014.0503.8
Nedlastinger
CAD/Step
QDE17-07524451167589SDR17122.016.0504.5
Nedlastinger
CAD/StepCAD/Inventor
QDE17-090244511890105SDR17138.017.0815.4
Nedlastinger
CAD/StepCAD/Inventor
QDE17-1000242000210001047SDR1711106017059.3
Nedlastinger
CAD/InventorCAD/Step
QDE17-1102445121110125SDR17158.018.0806.6
Nedlastinger
CAD/StepCAD/Inventor
QDE17-1200242000312001245SDR1713307517071.1
Nedlastinger
CAD/InventorCAD/Step
QDE17-1252445123125132SDR17158.018.0847.4
Nedlastinger
CAD/StepCAD/Inventor
QDE17-1402445125140155SDR17188.018.0928.3
Nedlastinger
CAD/StepCAD/Inventor
QDE17-140024200041400SDR17
QDE17-1602445127160175SDR17212.018.0929.5
Nedlastinger
CAD/StepCAD/Inventor
QDE17-1802445129180183SDR17212.020.09210.7
Nedlastinger
CAD/StepCAD/Inventor
QDE17-2002445132200232SDR17268.024.011011.9
Nedlastinger
CAD/StepCAD/Inventor
QDE17-2252445134225235SDR17268.024.0112.513.4
Nedlastinger
CAD/StepCAD/Inventor
QDE17-2502445136250285SDR17320.025.013214.8
Nedlastinger
CAD/StepCAD/Inventor
QDE17-2802445138280288SDR17320.025.012816.6
Nedlastinger
CAD/StepCAD/Inventor
QDE17-3152445141315335SDR17370.025.013618.7
Nedlastinger
CAD/StepCAD/Inventor
QDE17-3552445143355373SDR17430.030.015021.1
Nedlastinger
CAD/StepCAD/Inventor
QDE17-4002445145400427SDR17482.033.015523.7
Nedlastinger
CAD/StepCAD/Inventor
QDE17-400-P400427SDR174823312323.7
QDE17-4502445146450514SDR17585.046.016826.7
Nedlastinger
CAD/StepCAD/Inventor
QDE17-450-DN4502420005450478SDR175354613126.7
Nedlastinger
CAD/InventorCAD/Step
QDE17-5002445147500530SDR175854617029.7
Nedlastinger
CAD/StepCAD/Inventor
QDE17-500-P500530SDR175854614629.7
QDE17-5602445148560615SDR17685.050.017533.2
Nedlastinger
CAD/StepCAD/Inventor
QDE17-560-P560615SDR176854014033.2
QDE17-6302445149630642SDR17685.050.018037.4
Nedlastinger
CAD/StepCAD/Inventor
QDE17-630-P630642SDR176855014537.4
QDE17-7102445151710738SDR178005017042.1
Nedlastinger
CAD/InventorCAD/Step
QDE17-8002445152800836SDR179055214747.4
Nedlastinger
CAD/InventorCAD/Step
QDE17-9002420006900944SDR1710055514553.3
Nedlastinger
CAD/InventorCAD/Step
