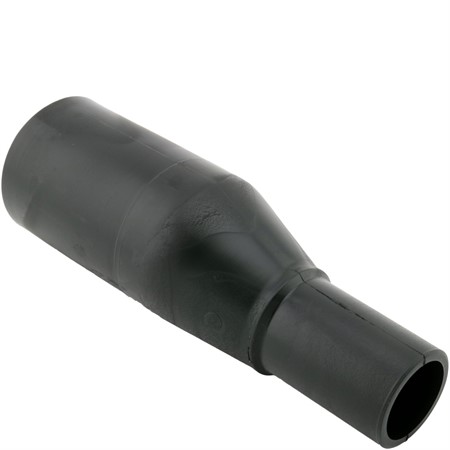

Reduksjon lang Eksentrisk SDR11

REL-EX11

Reduksjon lang Eksentrisk SDR11

  • PE100-reduksjon lang
  • Eksentrisk
  • Lange ender
  • SDR11: Vann PN 16 Gass PN 10
Produktdatablad
FDV
Teknisk tegning
ArtikkelkodeNRF.da(OD)da1(OD1)SDRLL1L2ss1På lager
REL-EX11-025-02024522712520SDR1110351383.03.0
Nedlastinger
CAD/Step
REL-EX11-032-02524522723225SDR1111456403.03.0
Nedlastinger
CAD/Step
REL-EX11-040-02524522734025SDR1112660403.73.0
Nedlastinger
CAD/Step
REL-EX11-040-03224522744032SDR1112559443.73.0
Nedlastinger
CAD/Step
REL-EX11-050-03224522755032SDR1115671454.63.0
Nedlastinger
CAD/Step
REL-EX11-050-04024522765040SDR1115771494.63.7
Nedlastinger
CAD/Step
REL-EX11-063-03224522776332SDR1117775455.83.0
Nedlastinger
CAD/Step
REL-EX11-063-04024522786340SDR1117776495.83.7
Nedlastinger
CAD/Step
REL-EX11-063-05024522796350SDR1117776565.84.6
Nedlastinger
CAD/Step
REL-EX11-075-05024522817550SDR1119582576.84.6
Nedlastinger
CAD/Step
REL-EX11-075-06324522827563SDR1119783636.85.8
Nedlastinger
CAD/Step
REL-EX11-090-06324522839063SDR1121392648.25.8
Nedlastinger
CAD/Step
REL-EX11-090-07524522849075SDR1121493698.26.8
Nedlastinger
CAD/Step
REL-EX11-110-063245228511063SDR11244996310.05.8
Nedlastinger
CAD/Step
REL-EX11-110-090245228611090SDR11240987910.08.2
Nedlastinger
CAD/Step
REL-EX11-125-063245228712563SDR112681056311.45.8
Nedlastinger
CAD/Step
REL-EX11-125-090245228812590SDR11265106.57911.48.2
Nedlastinger
CAD/Step
REL-EX11-125-1102452289125110SDR112601038711.410.0
Nedlastinger
CAD/Step
REL-EX11-140-1252452291140125SDR11283109.59512.711.4
Nedlastinger
CAD/Step
REL-EX11-160-090245229216090SDR11309117.57914.68.2
Nedlastinger
CAD/Step
REL-EX11-160-1102452293160110SDR11305115.58714.610.0
Nedlastinger
CAD/Step
REL-EX11-160-1252452294160125SDR11309116.59114.611.4
Nedlastinger
CAD/Step
REL-EX11-160-1402452295160140SDR11308116.597.514.612.7
Nedlastinger
CAD/Step
REL-EX11-180-090245229618090SDR11348128.57916.48.2
Nedlastinger
CAD/Step
REL-EX11-180-1252452297180125SDR113451309316.411.4
Nedlastinger
CAD/Step
REL-EX11-180-1602452298180160SDR1134513010416.414.6
Nedlastinger
CAD/Step
REL-EX11-200-1602452299200160SDR11373138.510418.214.6
Nedlastinger
CAD/Step
REL-EX11-200-1802452451200180SDR11373143.511118.216.4
Nedlastinger
CAD/Step
REL-EX11-225-1602452452225160SDR11402154.510020.514.6
Nedlastinger
CAD/Step
REL-EX11-225-1802452453225180SDR11403154.511020.516.4
Nedlastinger
CAD/Step
REL-EX11-225-2002452454225200SDR11403155.511520.518.2
Nedlastinger
CAD/Step
REL-EX11-250-2002452455250200SDR1144018012022.718.2
Nedlastinger
CAD/Step
REL-EX11-250-2252452456250225SDR1144017912522.720.5
