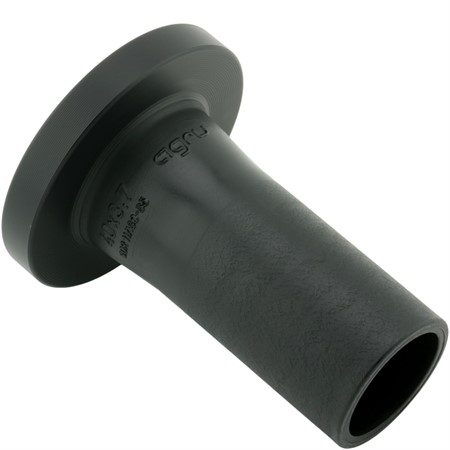

Krage SDR17 faset for spjeldventil.

QELFK17

Krage SDR17 faset for spjeldventil

  • Krage faset for spjeldventil
  • Lange ender
  • SDR17
  • Vann PN 10
  • Gass PN 6
Produktdatablad
FDV
Teknisk tegning
ArtikkelkodeNRF.dd3SDRd4h1lsPå lager
QELFK17-090245266490105SDR1730138171415.3
QELFK17-1102452665110125SDR17158.018158.06.6
Nedlastinger
CAD/InventorCAD/Step
QELFK17-1402452666140155SDR17188.018178.58.3
Nedlastinger
CAD/InventorCAD/Step
QELFK17-1602452667160175SDR17212.018196.59.5
Nedlastinger
CAD/InventorCAD/Step
QELFK17-1802452668180183SDR17302122019610.6
Nedlastinger
CAD/InventorCAD/Step
QELFK17-2002452669200232SDR17268.024208.511.9
Nedlastinger
CAD/InventorCAD/Step
QELFK17-2252452671225235SDR17268.024208.513.4
Nedlastinger
CAD/InventorCAD/Step
QELFK17-2502452672250285SDR17320.025202.014.8
Nedlastinger
CAD/InventorCAD/Step
QELFK17-2802452673280288SDR17320.025218.016.6
Nedlastinger
CAD/InventorCAD/Step
QELFK17-3152452674315335SDR17370.025217.018.7
Nedlastinger
CAD/InventorCAD/Step
QELFK17-3552452675355373SDR17430.030252.021.1
Nedlastinger
CAD/InventorCAD/Step
QELFK17-4002452676400427SDR17482.033262.023.7
Nedlastinger
CAD/InventorCAD/Step
QELFK17-450-DN450450478SDR17305354632626.5
QELFK17-5002452677500530SDR17305854633129.7
QELFK17-5602452678560SDR173068537133.2
QELFK17-6302452679630SDR173068536037.4
