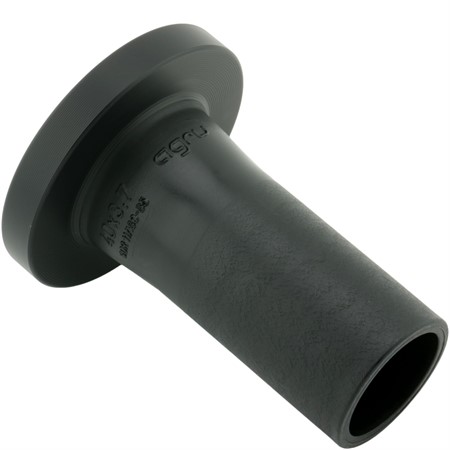

Krage lang SDR17

QEL17

Krage lang SDR17

  • PE100 krage lang
  • Lange ender
  • SDR17: Vann PN 10 Gass PN 6
FDV
Produktdatablad
Teknisk tegning
ArtikkelkodeNRF.da(OD)d3SDRd4hLL3sPå lager
QEL17-06324520596375SDR17102.014.011978.03.8
Nedlastinger
CAD/InventorCAD/Step
QEL17-07524520617589SDR17122.016.012685.54.5
Nedlastinger
CAD/InventorCAD/Step
QEL17-090245206290105SDR17138.017.0140100.05.4
Nedlastinger
CAD/InventorCAD/Step
QEL17-1102452063110125SDR17158.018.0158113.06.6
Nedlastinger
CAD/InventorCAD/Step
QEL17-1252452064125132SDR17158.018.0167125.07.4
Nedlastinger
CAD/InventorCAD/Step
QEL17-1402452065140155SDR17188.018.0180127.08.3
Nedlastinger
CAD/InventorCAD/Step
QEL17-1602452066160175SDR17212.018.0198148.09.5
Nedlastinger
CAD/InventorCAD/Step
QEL17-1802452067180183SDR17212.020.021014810.7
Nedlastinger
CAD/InventorCAD/Step
QEL17-2002452068200232SDR17268.024.0207143.011.9
Nedlastinger
CAD/InventorCAD/Step
QEL17-2252452069225235SDR17268.024.0210154.013.4
Nedlastinger
CAD/InventorCAD/Step
QEL17-2502452073250285SDR17320.025.0204132.014.8
Nedlastinger
CAD/InventorCAD/Step
QEL17-2802452071280288SDR17320.025.0218145.016.6
Nedlastinger
CAD/InventorCAD/Step
QEL17-3152452072315335SDR17370.025.0219154.018.7
Nedlastinger
CAD/InventorCAD/Step
QEL17-3552452074355373SDR17430.030.0255178.021.1
Nedlastinger
CAD/InventorCAD/Step
QEL17-4002452075400427SDR17482.033.0265186.023.7
Nedlastinger
CAD/InventorCAD/Step
QEL17-4502452076450514SDR17585.046.0340220.026.7
Nedlastinger
CAD/StepCAD/Inventor
QEL17-450-DN4502451595450478SDR175354632622026.7
Nedlastinger
CAD/InventorCAD/Step
QEL17-5002452077500530SDR17585.046.034423529.7
Nedlastinger
CAD/StepCAD/Inventor
QEL17-5602452078560615SDR17685.050.0380260.033.2
Nedlastinger
CAD/InventorCAD/Step
QEL17-6302452079630642SDR17685.050.0375270.037.4
Nedlastinger
CAD/InventorCAD/Step
